Ailavi® Standard ARM 20-pin JTAG Interface to 10-Pin 2.0mm and 10-Pin 1.27mm Spacing SWD /JTAG Interface Adapter
This interface converter is electrical connector for electric module and program circuit board.
- Brand: AILAVI
- Product Code: Ot30201448
- Availability: In Stock
- Product Size:18 x 15 x 3 m
- Weight: 0.03 kg
The standard ARM 20P 2.54-pitch JTAG interface is a 10P 2.0mm and 1.27mm pitch SWD/JTAG interface with a 10P 2.0mm pitch cable and a 1.27mm pitch cable.
- With 10-pin 2.0mm spacing cable.
- Compatible with our LPC1114 core module(Click jump to the module).
- This board also with 20 pin 2.0 spacing JTAG interface(cable not included), and 1.27 spacing 10-pin SWD interface (no welding seat).
- These interfaces are suitable for the projects with limited layout space.
- Board size: 28*33*2.5mm
- Wire length :7cm
- Net:7g
This product has 3 options, transfer interface and wiring are different, please carefully compare customer choice:
- 20P to 10P2.0 and 1.27: It is an ARM20-pin 2.54-pitch JTAG interface to 10-pin 2.0mm and 1.27mm pitch SWD/JTAG interfaces.
- 20P 2.54 to 10P 1.27: 20-pin 2.54-pitch JTAG interface to 10-pin 1.27mm-pitch SWD interface adapter plate.
- 20P to 10P2.00mm: It is a 20-pin JTAG interface to 10-pin 2.0mm pitch SWD interface adapter board.

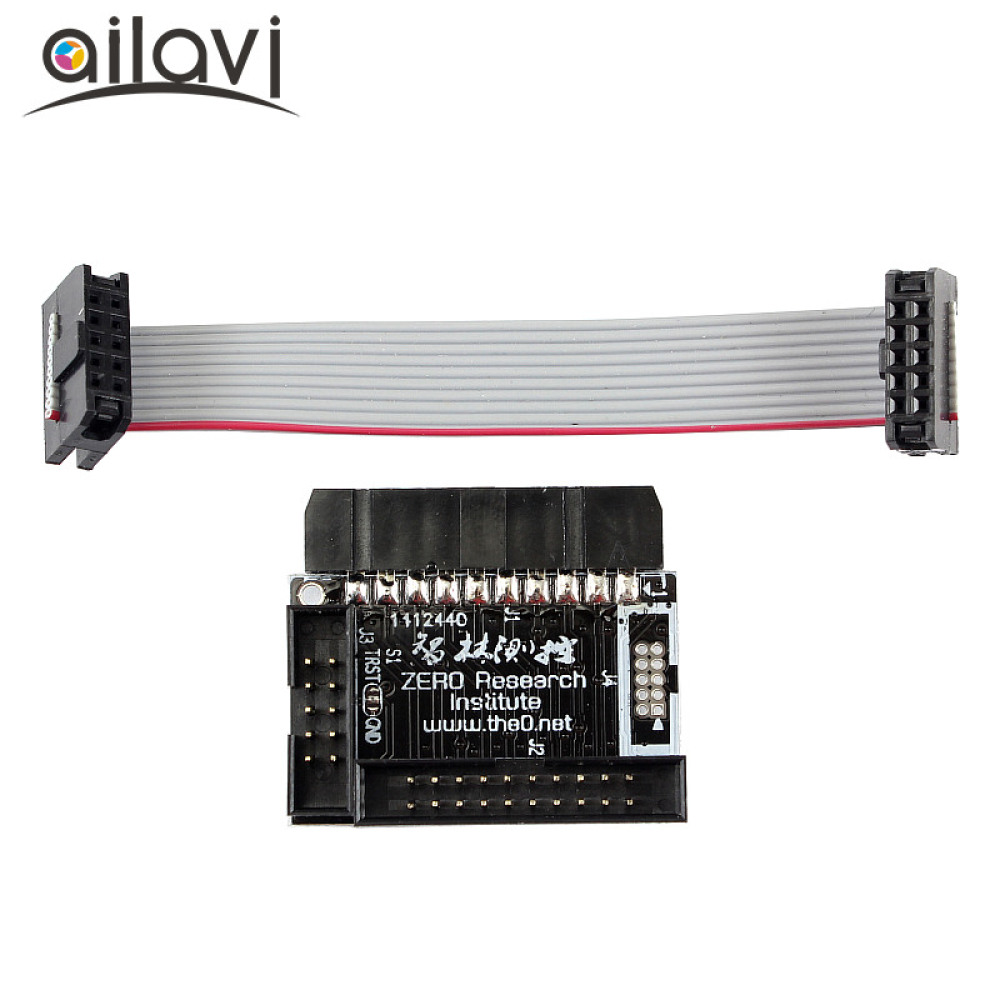

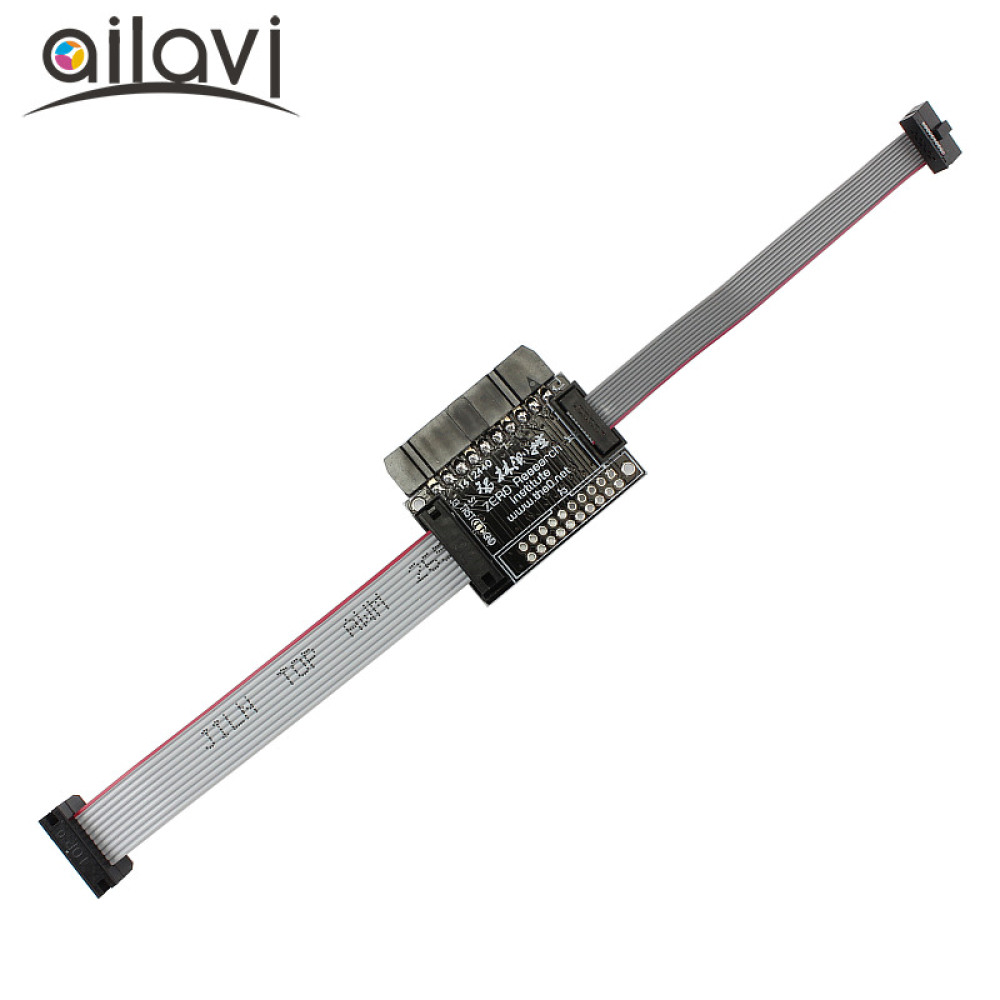

1) 20P 2.54 to 10P2.0 and 1.27 pictures:

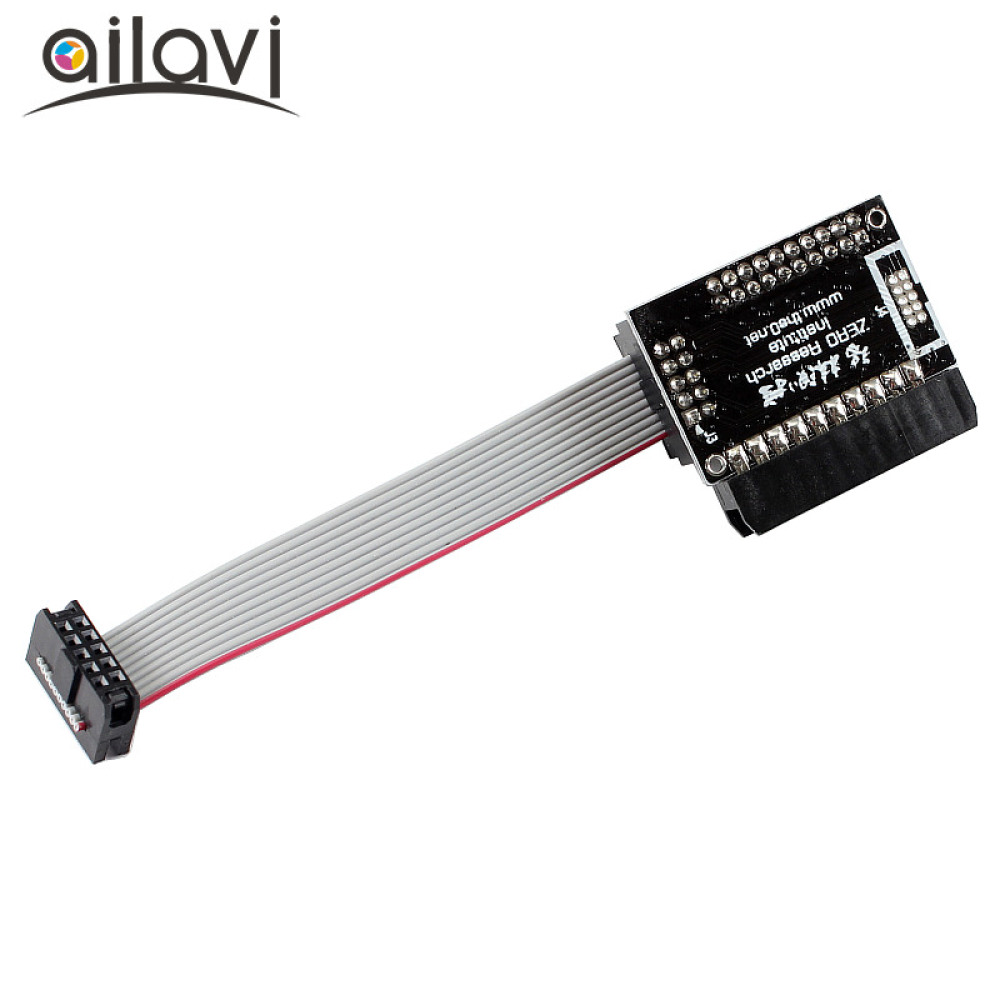

2) 20P 2.54 to 10P 1.27 pictures:

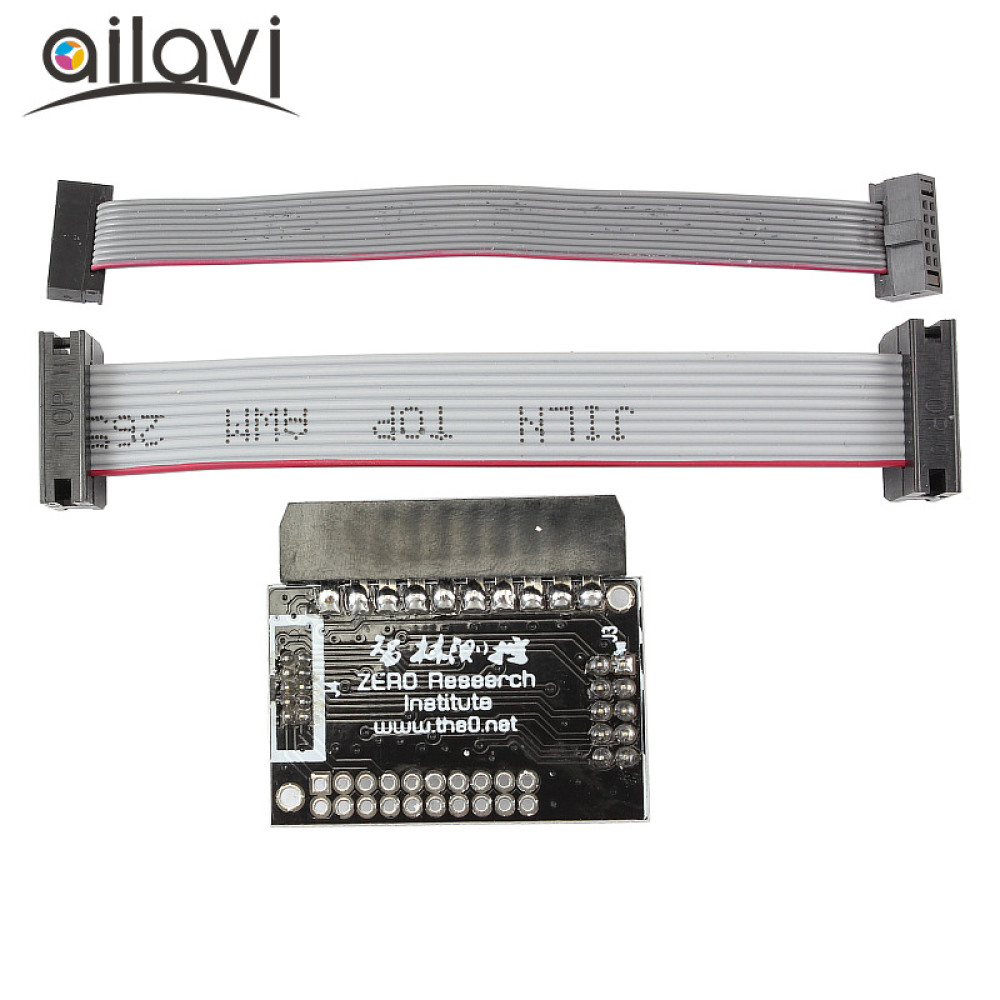

3) 20P 2.54 to 10P 2.00mm pictures:
